VLBA conversion guide

from importlib.metadata import version
import os

try:
    import xradio

    print("XRADIO version", version("xradio"), "already installed.")
except ImportError as e:
    print(e)
    print("Installing XRADIO")

    os.system("pip install xradio")

    import xradio

    print("xradio version", version("xradio"), " installed.")

XRADIO version 1.1.3 already installed.

Download dataset

Original VLBA dataset gotten from https://casaguides.nrao.edu/index.php?title=VLBA_Basic_Phase-referencing_Calibration_and_Imaging.

Reduced the data using:

mstransform(vis='VLBA_TL016B.ms/',outputvis='VLBA_TL016B_split_lsrk.ms',spw='0:0~5,1:0~5',field='0,1', timerange='2022/02/21/06:14:00~2022/02/21/07:55:45.00', regridms=True,outframe='lsrk',datacolumn='all')

import toolviper

toolviper.utils.data.download(file="VLBA_TL016B_split.ms")

[2026-04-20 15:20:58,776]     INFO   toolviper:  Initializing download...
[2026-04-20 15:20:58,777]     INFO   toolviper:  File already exists: /Users/vdesouza/work/xradio/docs/source/measurement_set/guides/VLBA_TL016B_split.ms

Convert to Processing Set

from xradio.measurement_set import convert_msv2_to_processing_set

ms_file = "VLBA_TL016B_split.ms"

main_chunksize = {"frequency": 1, "time": 20}  # baseline, polarization
outfile = "VLBA_TL016B_split_lsrk.ps.zarr"
convert_msv2_to_processing_set(
    in_file=ms_file,
    out_file=outfile,
    parallel_mode="none",
    partition_scheme=["FIELD_ID"],
    persistence_mode='w',
    main_chunksize=main_chunksize,
)

[2026-04-20 15:20:59,172]     INFO   toolviper:  Updated partition scheme used: ['DATA_DESC_ID', 'OBSERVATION_ID', 'FIELD_ID']
[2026-04-20 15:20:59,173]     INFO   toolviper:  Number of partitions: 4
[2026-04-20 15:20:59,173]     INFO   toolviper:  OBSERVATION_ID [0], DDI [0], STATE [None], FIELD [0], SCAN [0], EPHEMERIS [None]
[2026-04-20 15:20:59,313]  WARNING   toolviper:  Source_id is -1. No source information will be included in the field_and_source_xds.
[2026-04-20 15:20:59,425]     INFO   toolviper:  OBSERVATION_ID [0], DDI [1], STATE [None], FIELD [0], SCAN [0], EPHEMERIS [None]
[2026-04-20 15:20:59,556]  WARNING   toolviper:  Source_id is -1. No source information will be included in the field_and_source_xds.
[2026-04-20 15:20:59,652]     INFO   toolviper:  OBSERVATION_ID [0], DDI [0], STATE [None], FIELD [1], SCAN [0], EPHEMERIS [None]
[2026-04-20 15:20:59,789]  WARNING   toolviper:  Source_id is -1. No source information will be included in the field_and_source_xds.
[2026-04-20 15:20:59,959]     INFO   toolviper:  OBSERVATION_ID [0], DDI [1], STATE [None], FIELD [1], SCAN [0], EPHEMERIS [None]
[2026-04-20 15:21:00,095]  WARNING   toolviper:  Source_id is -1. No source information will be included in the field_and_source_xds.

Processing Set

from xradio.measurement_set import open_processing_set

ps_xdt = open_processing_set(ps_store=outfile)
ps_xdt.xr_ps.summary()

	name	scan_intents	shape	execution_block_UID	polarization	scan_name	spw_name	spw_intents	field_name	source_name	line_name	field_coords	session_reference_UID	scheduling_block_UID	project_UID	start_frequency	end_frequency
0	VLBA_TL016B_split_0	[None]	(200, 55, 6, 2)	---	[RR, LL]	[0]	spw_0	[UNSPECIFIED]	[4C39.25_0]	[Unknown]	[]	[fk5, 9h27m03.01s, 39d02m20.85s]	---	---	TL016B	5.004000e+09	5.006500e+09
1	VLBA_TL016B_split_1	[None]	(200, 55, 6, 2)	---	[RR, LL]	[0]	spw_1	[UNSPECIFIED]	[4C39.25_0]	[Unknown]	[]	[fk5, 9h27m03.01s, 39d02m20.85s]	---	---	TL016B	5.068000e+09	5.070500e+09
2	VLBA_TL016B_split_2	[None]	(540, 55, 6, 2)	---	[RR, LL]	[0]	spw_0	[UNSPECIFIED]	[J1154+6022_1]	[Unknown]	[]	[fk5, 11h54m04.54s, 60d22m20.82s]	---	---	TL016B	5.004000e+09	5.006500e+09
3	VLBA_TL016B_split_3	[None]	(540, 55, 6, 2)	---	[RR, LL]	[0]	spw_1	[UNSPECIFIED]	[J1154+6022_1]	[Unknown]	[]	[fk5, 11h54m04.54s, 60d22m20.82s]	---	---	TL016B	5.068000e+09	5.070500e+09

ms_xdt = ps_xdt["VLBA_TL016B_split_3"]
ms_xdt

<xarray.DataTree 'VLBA_TL016B_split_3'>
Group: /VLBA_TL016B_split_3
│   Dimensions:                     (time: 540, baseline_id: 55, frequency: 6,
│                                    polarization: 2, uvw_label: 3)
│   Coordinates:
│     * time                        (time) float64 4kB 1.645e+09 ... 1.645e+09
│       field_name                  (time) <U32 69kB dask.array<chunksize=(540,), meta=np.ndarray>
│       scan_name                   (time) <U21 45kB dask.array<chunksize=(540,), meta=np.ndarray>
│     * baseline_id                 (baseline_id) int64 440B 0 1 2 3 ... 51 52 53 54
│       baseline_antenna1_name      (baseline_id) <U2 440B dask.array<chunksize=(55,), meta=np.ndarray>
│       baseline_antenna2_name      (baseline_id) <U2 440B dask.array<chunksize=(55,), meta=np.ndarray>
│     * frequency                   (frequency) float64 48B 5.068e+09 ... 5.07e+09
│     * polarization                (polarization) <U2 16B 'RR' 'LL'
│     * uvw_label                   (uvw_label) <U1 12B 'u' 'v' 'w'
│   Data variables:
│       EFFECTIVE_INTEGRATION_TIME  (time, baseline_id) float64 238kB dask.array<chunksize=(20, 55), meta=np.ndarray>
│       FLAG                        (time, baseline_id, frequency, polarization) bool 356kB dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>
│       TIME_CENTROID               (time, baseline_id) float64 238kB dask.array<chunksize=(20, 55), meta=np.ndarray>
│       UVW                         (time, baseline_id, uvw_label) float64 713kB dask.array<chunksize=(20, 55, 3), meta=np.ndarray>
│       VISIBILITY                  (time, baseline_id, frequency, polarization) complex64 3MB dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>
│       WEIGHT                      (time, baseline_id, frequency, polarization) float32 1MB dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>
│   Attributes:
│       creation_date:     2026-04-20T21:20:59.970221+00:00
│       creator:           {'software_name': 'xradio', 'version': '1.1.3'}
│       data_groups:       {'base': {'correlated_data': 'VISIBILITY', 'date': '20...
│       observation_info:  {'observer': ['PLUTO'], 'observing_log': '[]', 'projec...
│       processor_info:    {'sub_type': '', 'type': ''}
│       schema_version:    4.0.0
│       type:              visibility
├── Group: /VLBA_TL016B_split_3/antenna_xds
│       Dimensions:                 (antenna_name: 10, cartesian_pos_label: 3,
│                                    receptor_label: 2)
│       Coordinates:
│         * antenna_name            (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
│           mount                   (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
│           station_name            (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           telescope_name          (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
│         * cartesian_pos_label     (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
│         * receptor_label          (receptor_label) <U5 40B 'pol_0' 'pol_1'
│           polarization_type       (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
│       Data variables:
│           ANTENNA_DISH_DIAMETER   (antenna_name) float64 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           ANTENNA_POSITION        (antenna_name, cartesian_pos_label) float64 240B dask.array<chunksize=(10, 3), meta=np.ndarray>
│           ANTENNA_RECEPTOR_ANGLE  (antenna_name, receptor_label) float64 160B dask.array<chunksize=(10, 2), meta=np.ndarray>
│       Attributes:
│           overall_telescope_name:  VLBA
│           relocatable_antennas:    False
│           type:                    antenna
├── Group: /VLBA_TL016B_split_3/field_and_source_base_xds
│       Dimensions:                       (field_name: 1, sky_dir_label: 2)
│       Coordinates:
│         * field_name                    (field_name) <U32 128B 'J1154+6022_1'
│           source_name                   (field_name) <U7 28B dask.array<chunksize=(1,), meta=np.ndarray>
│         * sky_dir_label                 (sky_dir_label) <U3 24B 'ra' 'dec'
│       Data variables:
│           FIELD_PHASE_CENTER_DIRECTION  (field_name, sky_dir_label) float64 16B dask.array<chunksize=(1, 2), meta=np.ndarray>
│       Attributes:
│           type:     field_and_source
├── Group: /VLBA_TL016B_split_3/gain_curve_xds
│       Dimensions:                 (antenna_name: 10, poly_term: 1, receptor_label: 2)
│       Coordinates:
│         * antenna_name            (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
│           antenna_id              (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
│           gain_curve_type         (antenna_name) <U9 360B dask.array<chunksize=(10,), meta=np.ndarray>
│           mount                   (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
│           station_name            (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           telescope_name          (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
│         * receptor_label          (receptor_label) <U5 40B 'pol_0' 'pol_1'
│           polarization_type       (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
│       Dimensions without coordinates: poly_term
│       Data variables:
│           GAIN_CURVE              (antenna_name, poly_term, receptor_label) float64 160B dask.array<chunksize=(10, 1, 2), meta=np.ndarray>
│           GAIN_CURVE_INTERVAL     (antenna_name) float64 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           GAIN_CURVE_SENSITIVITY  (antenna_name, receptor_label) float64 160B dask.array<chunksize=(10, 2), meta=np.ndarray>
│       Attributes:
│           measured_date:  2022-02-21T09:50:25
│           type:           gain_curve
├── Group: /VLBA_TL016B_split_3/phase_calibration_xds
│       Dimensions:                   (antenna_name: 10, time_phase_cal: 141,
│                                      receptor_label: 2, tone_label: 2)
│       Coordinates:
│         * antenna_name              (antenna_name) <U2 80B 'BR' 'FD' ... 'PT' 'SC'
│           antenna_id                (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
│           mount                     (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
│           station_name              (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           telescope_name            (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
│         * time_phase_cal            (time_phase_cal) float64 1kB 1.645e+09 ... 1.64...
│         * receptor_label            (receptor_label) <U5 40B 'pol_0' 'pol_1'
│           polarization_type         (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
│         * tone_label                (tone_label) <U6 48B 'freq_0' 'freq_1'
│       Data variables:
│           PHASE_CAL                 (antenna_name, time_phase_cal, receptor_label, tone_label) complex64 45kB dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>
│           PHASE_CAL_CABLE_CAL       (antenna_name, time_phase_cal) float64 11kB dask.array<chunksize=(10, 141), meta=np.ndarray>
│           PHASE_CAL_INTERVAL        (antenna_name, time_phase_cal) float64 11kB dask.array<chunksize=(10, 141), meta=np.ndarray>
│           PHASE_CAL_TONE_FREQUENCY  (antenna_name, time_phase_cal, receptor_label, tone_label) float64 45kB dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>
│       Attributes:
│           type:     phase_calibration
├── Group: /VLBA_TL016B_split_3/system_calibration_xds
│       Dimensions:            (antenna_name: 10, time_system_cal: 1192,
│                               receptor_label: 2)
│       Coordinates:
│         * antenna_name       (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'
│           antenna_id         (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
│           mount              (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
│           station_name       (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
│           telescope_name     (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
│         * time_system_cal    (time_system_cal) float64 10kB 1.645e+09 ... 1.645e+09
│         * receptor_label     (receptor_label) <U5 40B 'pol_0' 'pol_1'
│           polarization_type  (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
│       Data variables:
│           TSYS               (antenna_name, time_system_cal, receptor_label) float64 191kB dask.array<chunksize=(10, 1192, 2), meta=np.ndarray>
│       Attributes:
│           type:     system_calibration
└── Group: /VLBA_TL016B_split_3/weather_xds
        Dimensions:              (station_name: 10, time_weather: 856,
                                  cartesian_pos_label: 3)
        Coordinates:
          * station_name         (station_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
          * time_weather         (time_weather) float64 7kB 1.645e+09 ... 1.645e+09
          * cartesian_pos_label  (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
        Data variables:
            DEW_POINT            (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            H2O                  (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            IONOS_ELECTRON       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            PRESSURE             (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            STATION_POSITION     (station_name, cartesian_pos_label) float64 240B dask.array<chunksize=(10, 3), meta=np.ndarray>
            TEMPERATURE          (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            WIND_DIRECTION       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
            WIND_SPEED           (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        Attributes:
            type:     weather

xarray.DataTree

'VLBA_TL016B_split_3'

• /VLBA_TL016B_split_3/antenna_xds(13)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • antenna_name: 10
    • cartesian_pos_label: 3
    • receptor_label: 2
  • Coordinates: (7)
    • antenna_name
      (antenna_name)
      <U2
      'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

      array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

    • mount
      (antenna_name)
      <U6
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • station_name
      (antenna_name)
      <U2
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • telescope_name
      (antenna_name)
      <U4
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • cartesian_pos_label
      (cartesian_pos_label)
      <U1
      'x' 'y' 'z'

      array(['x', 'y', 'z'], dtype='<U1')

    • receptor_label
      (receptor_label)
      <U5
      'pol_0' 'pol_1'

      array(['pol_0', 'pol_1'], dtype='<U5')

    • polarization_type
      (antenna_name, receptor_label)
      <U1
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • Data variables: (3)
    • ANTENNA_DISH_DIAMETER
      (antenna_name)
      float64
      dask.array<chunksize=(10,), meta=np.ndarray>

      type :

      quantity

      units :

      m

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

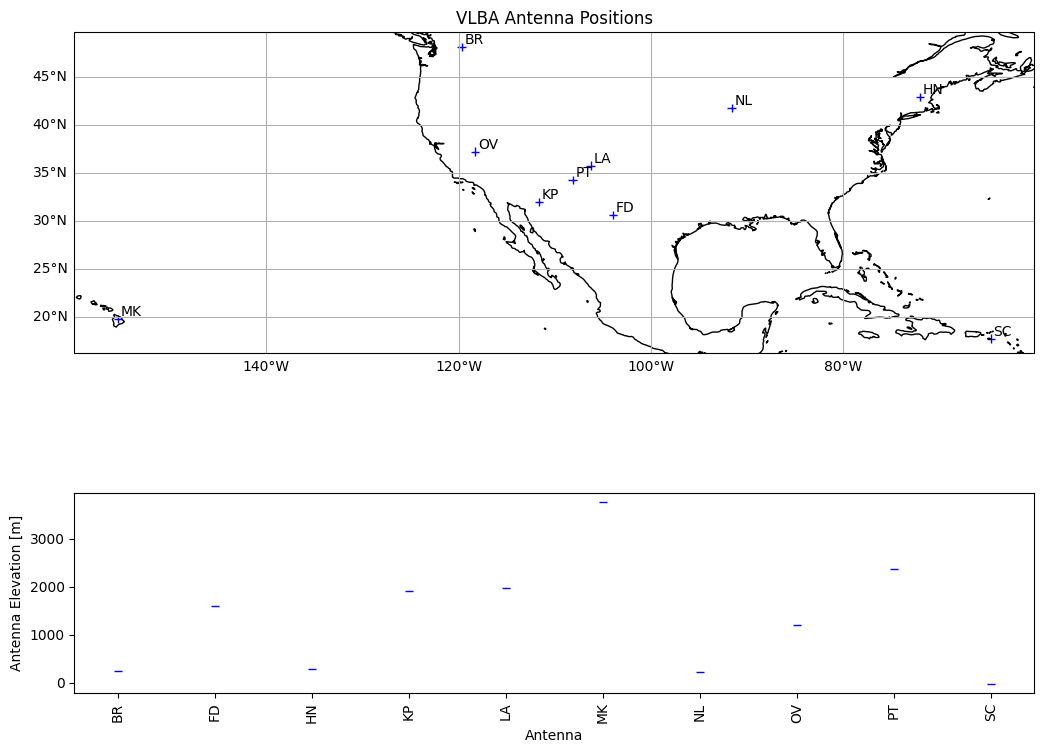

    • ANTENNA_POSITION
      (antenna_name, cartesian_pos_label)
      float64
      dask.array<chunksize=(10, 3), meta=np.ndarray>

      coordinate_system :

      geocentric

      frame :

      ITRS

      origin_object_name :

      earth

      type :

      location

      units :

      m

      Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • ANTENNA_RECEPTOR_ANGLE
      (antenna_name, receptor_label)
      float64
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      type :

      quantity

      units :

      rad

      Array Chunk Bytes 160 B 160 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (3)

    overall_telescope_name :

    VLBA

    relocatable_antennas :

    False

    type :

    antenna

  /VLBA_TL016B_split_3/field_and_source_base_xds(5)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • field_name: 1
    • sky_dir_label: 2
  • Coordinates: (3)
    • field_name
      (field_name)
      <U32
      'J1154+6022_1'

      array(['J1154+6022_1'], dtype='<U32')

    • source_name
      (field_name)
      <U7
      dask.array<chunksize=(1,), meta=np.ndarray>

      Array Chunk Bytes 28 B 28 B Shape (1,) (1,) Dask graph 1 chunks in 2 graph layers Data type

    • sky_dir_label
      (sky_dir_label)
      <U3
      'ra' 'dec'

      array(['ra', 'dec'], dtype='<U3')

  • Data variables: (1)

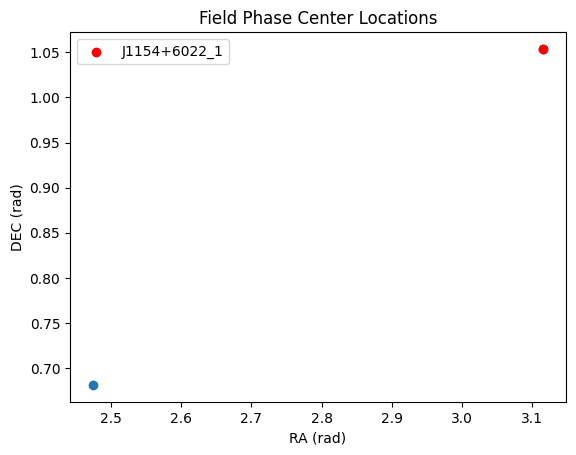

    • FIELD_PHASE_CENTER_DIRECTION
      (field_name, sky_dir_label)
      float64
      dask.array<chunksize=(1, 2), meta=np.ndarray>

      frame :

      fk5

      type :

      sky_coord

      units :

      rad

      Array Chunk Bytes 16 B 16 B Shape (1, 2) (1, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (1)

    type :

    field_and_source

  /VLBA_TL016B_split_3/gain_curve_xds(13)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • antenna_name: 10
    • poly_term: 1
    • receptor_label: 2
  • Coordinates: (8)
    • antenna_name
      (antenna_name)
      <U2
      'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

      array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

    • antenna_id
      (antenna_name)
      int32
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

    • gain_curve_type
      (antenna_name)
      <U9
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 360 B 360 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • mount
      (antenna_name)
      <U6
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • station_name
      (antenna_name)
      <U2
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • telescope_name
      (antenna_name)
      <U4
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • receptor_label
      (receptor_label)
      <U5
      'pol_0' 'pol_1'

      array(['pol_0', 'pol_1'], dtype='<U5')

    • polarization_type
      (antenna_name, receptor_label)
      <U1
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • Data variables: (3)
    • GAIN_CURVE
      (antenna_name, poly_term, receptor_label)
      float64
      dask.array<chunksize=(10, 1, 2), meta=np.ndarray>

      Array Chunk Bytes 160 B 160 B Shape (10, 1, 2) (10, 1, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • GAIN_CURVE_INTERVAL
      (antenna_name)
      float64
      dask.array<chunksize=(10,), meta=np.ndarray>

      type :

      quantity

      units :

      s

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • GAIN_CURVE_SENSITIVITY
      (antenna_name, receptor_label)
      float64
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      type :

      quantity

      units :

      K/Jy

      Array Chunk Bytes 160 B 160 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (2)

    measured_date :

    2022-02-21T09:50:25

    type :

    gain_curve

  /VLBA_TL016B_split_3/phase_calibration_xds(14)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • antenna_name: 10
    • time_phase_cal: 141
    • receptor_label: 2
    • tone_label: 2
  • Coordinates: (9)
    • antenna_name
      (antenna_name)
      <U2
      'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

      array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

    • antenna_id
      (antenna_name)
      int32
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

    • mount
      (antenna_name)
      <U6
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • station_name
      (antenna_name)
      <U2
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • telescope_name
      (antenna_name)
      <U4
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • time_phase_cal
      (time_phase_cal)
      float64
      1.645e+09 1.645e+09 ... 1.645e+09

      format :

      unix

      scale :

      utc

      type :

      time

      units :

      s

      array([1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645424e+09,1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645425e+09, 1.645425e+09,1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645428e+09, 1.645428e+09,1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,1.645429e+09, 1.645429e+09, 1.645429e+09, 1.645429e+09, 1.645429e+09,1.645429e+09, 1.645429e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,1.645430e+09])

    • receptor_label
      (receptor_label)
      <U5
      'pol_0' 'pol_1'

      array(['pol_0', 'pol_1'], dtype='<U5')

    • polarization_type
      (antenna_name, receptor_label)
      <U1
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

    • tone_label
      (tone_label)
      <U6
      'freq_0' 'freq_1'

      array(['freq_0', 'freq_1'], dtype='<U6')

  • Data variables: (4)
    • PHASE_CAL
      (antenna_name, time_phase_cal, receptor_label, tone_label)
      complex64
      dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>

      Array Chunk Bytes 44.06 kiB 44.06 kiB Shape (10, 141, 2, 2) (10, 141, 2, 2) Dask graph 1 chunks in 2 graph layers Data type complex64 numpy.ndarray

    • PHASE_CAL_CABLE_CAL
      (antenna_name, time_phase_cal)
      float64
      dask.array<chunksize=(10, 141), meta=np.ndarray>

      type :

      quantity

      units :

      s

      Array Chunk Bytes 11.02 kiB 11.02 kiB Shape (10, 141) (10, 141) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • PHASE_CAL_INTERVAL
      (antenna_name, time_phase_cal)
      float64
      dask.array<chunksize=(10, 141), meta=np.ndarray>

      type :

      quantity

      units :

      s

      Array Chunk Bytes 11.02 kiB 11.02 kiB Shape (10, 141) (10, 141) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • PHASE_CAL_TONE_FREQUENCY
      (antenna_name, time_phase_cal, receptor_label, tone_label)
      float64
      dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>

      type :

      quantity

      units :

      Hz

      Array Chunk Bytes 44.06 kiB 44.06 kiB Shape (10, 141, 2, 2) (10, 141, 2, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (1)

    type :

    phase_calibration

  /VLBA_TL016B_split_3/system_calibration_xds(10)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • antenna_name: 10
    • time_system_cal: 1192
    • receptor_label: 2
  • Coordinates: (8)
    • antenna_name
      (antenna_name)
      <U2
      'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

      array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

    • antenna_id
      (antenna_name)
      int32
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

    • mount
      (antenna_name)
      <U6
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • station_name
      (antenna_name)
      <U2
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • telescope_name
      (antenna_name)
      <U4
      dask.array<chunksize=(10,), meta=np.ndarray>

      Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

    • time_system_cal
      (time_system_cal)
      float64
      1.645e+09 1.645e+09 ... 1.645e+09

      format :

      unix

      scale :

      utc

      type :

      time

      units :

      s

      array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645450e+09,1.645450e+09, 1.645450e+09], shape=(1192,))

    • receptor_label
      (receptor_label)
      <U5
      'pol_0' 'pol_1'

      array(['pol_0', 'pol_1'], dtype='<U5')

    • polarization_type
      (antenna_name, receptor_label)
      <U1
      dask.array<chunksize=(10, 2), meta=np.ndarray>

      Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • Data variables: (1)
    • TSYS
      (antenna_name, time_system_cal, receptor_label)
      float64
      dask.array<chunksize=(10, 1192, 2), meta=np.ndarray>

      type :

      quantity

      units :

      K

      Array Chunk Bytes 186.25 kiB 186.25 kiB Shape (10, 1192, 2) (10, 1192, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (1)

    type :

    system_calibration

  /VLBA_TL016B_split_3/weather_xds(12)

  • Dimensions:
    • time: 540
    • baseline_id: 55
    • frequency: 6
    • polarization: 2
    • uvw_label: 3
    • station_name: 10
    • time_weather: 856
    • cartesian_pos_label: 3
  • Coordinates: (3)
    • station_name
      (station_name)
      <U2
      'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

      array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

    • time_weather
      (time_weather)
      float64
      1.645e+09 1.645e+09 ... 1.645e+09

      format :

      unix

      scale :

      utc

      type :

      time_weather

      units :

      s

      array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645450e+09,1.645450e+09, 1.645450e+09], shape=(856,))

    • cartesian_pos_label
      (cartesian_pos_label)
      <U1
      'x' 'y' 'z'

      array(['x', 'y', 'z'], dtype='<U1')

  • Data variables: (8)
    • DEW_POINT
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      K

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • H2O
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      /m^2

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • IONOS_ELECTRON
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      /m^2

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • PRESSURE
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      Pa

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • STATION_POSITION
      (station_name, cartesian_pos_label)
      float64
      dask.array<chunksize=(10, 3), meta=np.ndarray>

      coordinate_system :

      geocentric

      frame :

      ITRS

      origin_object_name :

      earth

      type :

      location

      units :

      m

      Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • TEMPERATURE
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      K

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • WIND_DIRECTION
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      rad

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

    • WIND_SPEED
      (station_name, time_weather)
      float64
      dask.array<chunksize=(10, 856), meta=np.ndarray>

      type :

      quantity

      units :

      m/s

      Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • Attributes: (1)

    type :

    weather

• Dimensions:
  • time: 540
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • uvw_label: 3
• Coordinates: (9)
  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • field_name
    (time)
    <U32
    dask.array<chunksize=(540,), meta=np.ndarray>

    Array Chunk Bytes 67.50 kiB 67.50 kiB Shape (540,) (540,) Dask graph 1 chunks in 2 graph layers Data type

  • scan_name
    (time)
    <U21
    dask.array<chunksize=(540,), meta=np.ndarray>

    scan_intents :

    ['None']

    Array Chunk Bytes 44.30 kiB 44.30 kiB Shape (540,) (540,) Dask graph 1 chunks in 2 graph layers Data type

  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • baseline_antenna1_name
    (baseline_id)
    <U2
    dask.array<chunksize=(55,), meta=np.ndarray>

    Array Chunk Bytes 440 B 440 B Shape (55,) (55,) Dask graph 1 chunks in 2 graph layers Data type

  • baseline_antenna2_name
    (baseline_id)
    <U2
    dask.array<chunksize=(55,), meta=np.ndarray>

    Array Chunk Bytes 440 B 440 B Shape (55,) (55,) Dask graph 1 chunks in 2 graph layers Data type

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (6)
  • EFFECTIVE_INTEGRATION_TIME
    (time, baseline_id)
    float64
    dask.array<chunksize=(20, 55), meta=np.ndarray>

    type :

    quantity

    units :

    s

    Array Chunk Bytes 232.03 kiB 8.59 kiB Shape (540, 55) (20, 55) Dask graph 27 chunks in 2 graph layers Data type float64 numpy.ndarray

  • FLAG
    (time, baseline_id, frequency, polarization)
    bool
    dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>

    Array Chunk Bytes 348.05 kiB 2.15 kiB Shape (540, 55, 6, 2) (20, 55, 1, 2) Dask graph 162 chunks in 2 graph layers Data type bool numpy.ndarray

  • TIME_CENTROID
    (time, baseline_id)
    float64
    dask.array<chunksize=(20, 55), meta=np.ndarray>

    format :

    unix

    scale :

    utc

    type :

    time

    units :

    s

    Array Chunk Bytes 232.03 kiB 8.59 kiB Shape (540, 55) (20, 55) Dask graph 27 chunks in 2 graph layers Data type float64 numpy.ndarray

  • UVW
    (time, baseline_id, uvw_label)
    float64
    dask.array<chunksize=(20, 55, 3), meta=np.ndarray>

    frame :

    fk5

    type :

    uvw

    units :

    m

    Array Chunk Bytes 696.09 kiB 25.78 kiB Shape (540, 55, 3) (20, 55, 3) Dask graph 27 chunks in 2 graph layers Data type float64 numpy.ndarray

  • VISIBILITY
    (time, baseline_id, frequency, polarization)
    complex64
    dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>

    type :

    quanta

    units :

    unkown

    Array Chunk Bytes 2.72 MiB 17.19 kiB Shape (540, 55, 6, 2) (20, 55, 1, 2) Dask graph 162 chunks in 2 graph layers Data type complex64 numpy.ndarray

  • WEIGHT
    (time, baseline_id, frequency, polarization)
    float32
    dask.array<chunksize=(20, 55, 1, 2), meta=np.ndarray>

    type :

    quanta

    units :

    unkown

    Array Chunk Bytes 1.36 MiB 8.59 kiB Shape (540, 55, 6, 2) (20, 55, 1, 2) Dask graph 162 chunks in 2 graph layers Data type float32 numpy.ndarray

• Attributes: (7)

  creation_date :

  2026-04-20T21:20:59.970221+00:00

  creator :

  {'software_name': 'xradio', 'version': '1.1.3'}

  data_groups :

  {'base': {'correlated_data': 'VISIBILITY', 'date': '2026-04-20T21:21:00.005128+00:00', 'description': "Data group derived from the data column 'VISIBILITY' of an MSv2 converted to MSv4", 'field_and_source': 'field_and_source_base_xds', 'flag': 'FLAG', 'uvw': 'UVW', 'weight': 'WEIGHT'}}

  observation_info :

  {'observer': ['PLUTO'], 'observing_log': '[]', 'project_UID': 'TL016B', 'release_date': '2022-02-21T06:13:40'}

  processor_info :

  {'sub_type': '', 'type': ''}

  schema_version :

  4.0.0

  type :

  visibility

ant_xds = ms_xdt.antenna_xds.ds
ant_xds

<xarray.DatasetView> Size: 6kB
Dimensions:                 (antenna_name: 10, cartesian_pos_label: 3,
                             receptor_label: 2, baseline_id: 55, frequency: 6,
                             polarization: 2, time: 540, uvw_label: 3)
Coordinates:
  * antenna_name            (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
    mount                   (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
    station_name            (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
    telescope_name          (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
  * cartesian_pos_label     (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
  * receptor_label          (receptor_label) <U5 40B 'pol_0' 'pol_1'
    polarization_type       (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
  * baseline_id             (baseline_id) int64 440B 0 1 2 3 4 ... 51 52 53 54
  * frequency               (frequency) float64 48B 5.068e+09 ... 5.07e+09
  * polarization            (polarization) <U2 16B 'RR' 'LL'
  * time                    (time) float64 4kB 1.645e+09 1.645e+09 ... 1.645e+09
  * uvw_label               (uvw_label) <U1 12B 'u' 'v' 'w'
Data variables:
    ANTENNA_DISH_DIAMETER   (antenna_name) float64 80B dask.array<chunksize=(10,), meta=np.ndarray>
    ANTENNA_POSITION        (antenna_name, cartesian_pos_label) float64 240B dask.array<chunksize=(10, 3), meta=np.ndarray>
    ANTENNA_RECEPTOR_ANGLE  (antenna_name, receptor_label) float64 160B dask.array<chunksize=(10, 2), meta=np.ndarray>
Attributes:
    overall_telescope_name:  VLBA
    relocatable_antennas:    False
    type:                    antenna

xarray.DatasetView

• Dimensions:
  • antenna_name: 10
  • cartesian_pos_label: 3
  • receptor_label: 2
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • time: 540
  • uvw_label: 3
• Coordinates: (12)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • mount
    (antenna_name)
    <U6
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • station_name
    (antenna_name)
    <U2
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • telescope_name
    (antenna_name)
    <U4
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • cartesian_pos_label
    (cartesian_pos_label)
    <U1
    'x' 'y' 'z'

    array(['x', 'y', 'z'], dtype='<U1')

  • receptor_label
    (receptor_label)
    <U5
    'pol_0' 'pol_1'

    array(['pol_0', 'pol_1'], dtype='<U5')

  • polarization_type
    (antenna_name, receptor_label)
    <U1
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (3)
  • ANTENNA_DISH_DIAMETER
    (antenna_name)
    float64
    dask.array<chunksize=(10,), meta=np.ndarray>

    type :

    quantity

    units :

    m

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • ANTENNA_POSITION
    (antenna_name, cartesian_pos_label)
    float64
    dask.array<chunksize=(10, 3), meta=np.ndarray>

    coordinate_system :

    geocentric

    frame :

    ITRS

    origin_object_name :

    earth

    type :

    location

    units :

    m

    Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • ANTENNA_RECEPTOR_ANGLE
    (antenna_name, receptor_label)
    float64
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    type :

    quantity

    units :

    rad

    Array Chunk Bytes 160 B 160 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (3)

  overall_telescope_name :

  VLBA

  relocatable_antennas :

  False

  type :

  antenna

ant_xds.ANTENNA_POSITION

<xarray.DataArray 'ANTENNA_POSITION' (antenna_name: 10, cartesian_pos_label: 3)> Size: 240B
dask.array<open_dataset-ANTENNA_POSITION, shape=(10, 3), dtype=float64, chunksize=(10, 3), chunktype=numpy.ndarray>
Coordinates:
  * antenna_name         (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
    mount                (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
    station_name         (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
    telescope_name       (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
  * cartesian_pos_label  (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
Attributes:
    coordinate_system:   geocentric
    frame:               ITRS
    origin_object_name:  earth
    type:                location
    units:               m

xarray.DataArray

'ANTENNA_POSITION'

• antenna_name: 10
• cartesian_pos_label: 3

• dask.array<chunksize=(10, 3), meta=np.ndarray>

  Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Coordinates: (5)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • mount
    (antenna_name)
    <U6
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • station_name
    (antenna_name)
    <U2
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • telescope_name
    (antenna_name)
    <U4
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • cartesian_pos_label
    (cartesian_pos_label)
    <U1
    'x' 'y' 'z'

    array(['x', 'y', 'z'], dtype='<U1')

• Attributes: (5)

  coordinate_system :

  geocentric

  frame :

  ITRS

  origin_object_name :

  earth

  type :

  location

  units :

  m

ant_xds.ANTENNA_POSITION.load()

<xarray.DataArray 'ANTENNA_POSITION' (antenna_name: 10, cartesian_pos_label: 3)> Size: 240B
array([[-2112065.339753, -3705356.513964,  4726813.595927],
       [-1324009.438905, -5332181.956657,  3231962.338382],
       [ 1446374.723555, -4447939.69817 ,  4322306.215011],
       [-1995678.95979 , -5037317.696765,  3357327.949827],
       [-1449752.711882, -4975298.576836,  3709123.785811],
       [-5464075.303632, -2495247.54864 ,  2148297.629883],
       [ -130872.637324, -4762317.087915,  4226850.972202],
       [-2409150.566965, -4478573.065876,  3838617.29146 ],
       [-1640954.066439, -5014816.028293,  3575411.724719],
       [ 2607848.714994, -5488069.460221,  1932739.843634]])
Coordinates:
  * antenna_name         (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
    mount                (antenna_name) <U6 240B 'ALT-AZ' 'ALT-AZ' ... 'ALT-AZ'
    station_name         (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
    telescope_name       (antenna_name) <U4 160B 'VLBA' 'VLBA' ... 'VLBA' 'VLBA'
  * cartesian_pos_label  (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
Attributes:
    coordinate_system:   geocentric
    frame:               ITRS
    origin_object_name:  earth
    type:                location
    units:               m

xarray.DataArray

'ANTENNA_POSITION'

• antenna_name: 10
• cartesian_pos_label: 3

• -2.112e+06 -3.705e+06 4.727e+06 ... 2.608e+06 -5.488e+06 1.933e+06

  array([[-2112065.339753, -3705356.513964,  4726813.595927],
         [-1324009.438905, -5332181.956657,  3231962.338382],
         [ 1446374.723555, -4447939.69817 ,  4322306.215011],
         [-1995678.95979 , -5037317.696765,  3357327.949827],
         [-1449752.711882, -4975298.576836,  3709123.785811],
         [-5464075.303632, -2495247.54864 ,  2148297.629883],
         [ -130872.637324, -4762317.087915,  4226850.972202],
         [-2409150.566965, -4478573.065876,  3838617.29146 ],
         [-1640954.066439, -5014816.028293,  3575411.724719],
         [ 2607848.714994, -5488069.460221,  1932739.843634]])

• Coordinates: (5)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • mount
    (antenna_name)
    <U6
    'ALT-AZ' 'ALT-AZ' ... 'ALT-AZ'

    array(['ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ',
           'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ'], dtype='<U6')

  • station_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'],
          dtype='<U2')

  • telescope_name
    (antenna_name)
    <U4
    'VLBA' 'VLBA' ... 'VLBA' 'VLBA'

    array(['VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA',
           'VLBA', 'VLBA'], dtype='<U4')

  • cartesian_pos_label
    (cartesian_pos_label)
    <U1
    'x' 'y' 'z'

    array(['x', 'y', 'z'], dtype='<U1')

• Attributes: (5)

  coordinate_system :

  geocentric

  frame :

  ITRS

  origin_object_name :

  earth

  type :

  location

  units :

  m

ant_xds.ANTENNA_RECEPTOR_ANGLE

<xarray.DataArray 'ANTENNA_RECEPTOR_ANGLE' (antenna_name: 10, receptor_label: 2)> Size: 160B
dask.array<open_dataset-ANTENNA_RECEPTOR_ANGLE, shape=(10, 2), dtype=float64, chunksize=(10, 2), chunktype=numpy.ndarray>
Coordinates:
  * antenna_name       (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'
    mount              (antenna_name) <U6 240B 'ALT-AZ' 'ALT-AZ' ... 'ALT-AZ'
    station_name       (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'
    telescope_name     (antenna_name) <U4 160B 'VLBA' 'VLBA' ... 'VLBA' 'VLBA'
  * receptor_label     (receptor_label) <U5 40B 'pol_0' 'pol_1'
    polarization_type  (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
Attributes:
    type:     quantity
    units:    rad

xarray.DataArray

'ANTENNA_RECEPTOR_ANGLE'

• antenna_name: 10
• receptor_label: 2

• dask.array<chunksize=(10, 2), meta=np.ndarray>

  Array Chunk Bytes 160 B 160 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Coordinates: (6)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • mount
    (antenna_name)
    <U6
    'ALT-AZ' 'ALT-AZ' ... 'ALT-AZ'

    array(['ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ',
           'ALT-AZ', 'ALT-AZ', 'ALT-AZ', 'ALT-AZ'], dtype='<U6')

  • station_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'],
          dtype='<U2')

  • telescope_name
    (antenna_name)
    <U4
    'VLBA' 'VLBA' ... 'VLBA' 'VLBA'

    array(['VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA', 'VLBA',
           'VLBA', 'VLBA'], dtype='<U4')

  • receptor_label
    (receptor_label)
    <U5
    'pol_0' 'pol_1'

    array(['pol_0', 'pol_1'], dtype='<U5')

  • polarization_type
    (antenna_name, receptor_label)
    <U1
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

• Attributes: (2)

  type :

  quantity

  units :

  rad

ms_xdt.xr_ms.get_field_and_source_xds()

<xarray.DatasetView> Size: 5kB
Dimensions:                       (field_name: 1, sky_dir_label: 2,
                                   baseline_id: 55, frequency: 6,
                                   polarization: 2, time: 540, uvw_label: 3)
Coordinates:
  * field_name                    (field_name) <U32 128B 'J1154+6022_1'
    source_name                   (field_name) <U7 28B dask.array<chunksize=(1,), meta=np.ndarray>
  * sky_dir_label                 (sky_dir_label) <U3 24B 'ra' 'dec'
  * baseline_id                   (baseline_id) int64 440B 0 1 2 3 ... 52 53 54
  * frequency                     (frequency) float64 48B 5.068e+09 ... 5.07e+09
  * polarization                  (polarization) <U2 16B 'RR' 'LL'
  * time                          (time) float64 4kB 1.645e+09 ... 1.645e+09
  * uvw_label                     (uvw_label) <U1 12B 'u' 'v' 'w'
Data variables:
    FIELD_PHASE_CENTER_DIRECTION  (field_name, sky_dir_label) float64 16B dask.array<chunksize=(1, 2), meta=np.ndarray>
Attributes:
    type:     field_and_source

xarray.DatasetView

• Dimensions:
  • field_name: 1
  • sky_dir_label: 2
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • time: 540
  • uvw_label: 3
• Coordinates: (8)
  • field_name
    (field_name)
    <U32
    'J1154+6022_1'

    array(['J1154+6022_1'], dtype='<U32')

  • source_name
    (field_name)
    <U7
    dask.array<chunksize=(1,), meta=np.ndarray>

    Array Chunk Bytes 28 B 28 B Shape (1,) (1,) Dask graph 1 chunks in 2 graph layers Data type

  • sky_dir_label
    (sky_dir_label)
    <U3
    'ra' 'dec'

    array(['ra', 'dec'], dtype='<U3')

  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (1)
  • FIELD_PHASE_CENTER_DIRECTION
    (field_name, sky_dir_label)
    float64
    dask.array<chunksize=(1, 2), meta=np.ndarray>

    frame :

    fk5

    type :

    sky_coord

    units :

    rad

    Array Chunk Bytes 16 B 16 B Shape (1, 2) (1, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (1)

  type :

  field_and_source

ms_xdt.weather_xds

<xarray.DataTree 'weather_xds'>
Group: /VLBA_TL016B_split_3/weather_xds
    Dimensions:              (time: 540, baseline_id: 55, frequency: 6,
                              polarization: 2, uvw_label: 3, station_name: 10,
                              time_weather: 856, cartesian_pos_label: 3)
    Coordinates:
      * station_name         (station_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
      * time_weather         (time_weather) float64 7kB 1.645e+09 ... 1.645e+09
      * cartesian_pos_label  (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
    Inherited coordinates:
      * baseline_id          (baseline_id) int64 440B 0 1 2 3 4 5 ... 50 51 52 53 54
      * frequency            (frequency) float64 48B 5.068e+09 ... 5.07e+09
      * polarization         (polarization) <U2 16B 'RR' 'LL'
      * time                 (time) float64 4kB 1.645e+09 1.645e+09 ... 1.645e+09
      * uvw_label            (uvw_label) <U1 12B 'u' 'v' 'w'
    Data variables:
        DEW_POINT            (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        H2O                  (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        IONOS_ELECTRON       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        PRESSURE             (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        STATION_POSITION     (station_name, cartesian_pos_label) float64 240B dask.array<chunksize=(10, 3), meta=np.ndarray>
        TEMPERATURE          (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        WIND_DIRECTION       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
        WIND_SPEED           (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    Attributes:
        type:     weather

xarray.DataTree

'weather_xds'

• Dimensions:
  • time: 540
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • uvw_label: 3
  • station_name: 10
  • time_weather: 856
  • cartesian_pos_label: 3
• Coordinates: (3)
  • station_name
    (station_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • time_weather
    (time_weather)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    scale :

    utc

    type :

    time_weather

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645450e+09,
           1.645450e+09, 1.645450e+09], shape=(856,))

  • cartesian_pos_label
    (cartesian_pos_label)
    <U1
    'x' 'y' 'z'

    array(['x', 'y', 'z'], dtype='<U1')

• Inherited coordinates: (5)
  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (8)
  • DEW_POINT
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    K

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • H2O
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    /m^2

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • IONOS_ELECTRON
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    /m^2

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • PRESSURE
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    Pa

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • STATION_POSITION
    (station_name, cartesian_pos_label)
    float64
    dask.array<chunksize=(10, 3), meta=np.ndarray>

    coordinate_system :

    geocentric

    frame :

    ITRS

    origin_object_name :

    earth

    type :

    location

    units :

    m

    Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • TEMPERATURE
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    K

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • WIND_DIRECTION
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    rad

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • WIND_SPEED
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    m/s

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (1)

  type :

  weather

weather_xds = ms_xdt.weather_xds.ds
weather_xds

<xarray.DatasetView> Size: 491kB
Dimensions:              (station_name: 10, time_weather: 856,
                          cartesian_pos_label: 3, baseline_id: 55,
                          frequency: 6, polarization: 2, time: 540, uvw_label: 3)
Coordinates:
  * station_name         (station_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
  * time_weather         (time_weather) float64 7kB 1.645e+09 ... 1.645e+09
  * cartesian_pos_label  (cartesian_pos_label) <U1 12B 'x' 'y' 'z'
  * baseline_id          (baseline_id) int64 440B 0 1 2 3 4 5 ... 50 51 52 53 54
  * frequency            (frequency) float64 48B 5.068e+09 ... 5.07e+09
  * polarization         (polarization) <U2 16B 'RR' 'LL'
  * time                 (time) float64 4kB 1.645e+09 1.645e+09 ... 1.645e+09
  * uvw_label            (uvw_label) <U1 12B 'u' 'v' 'w'
Data variables:
    DEW_POINT            (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    H2O                  (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    IONOS_ELECTRON       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    PRESSURE             (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    STATION_POSITION     (station_name, cartesian_pos_label) float64 240B dask.array<chunksize=(10, 3), meta=np.ndarray>
    TEMPERATURE          (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    WIND_DIRECTION       (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
    WIND_SPEED           (station_name, time_weather) float64 68kB dask.array<chunksize=(10, 856), meta=np.ndarray>
Attributes:
    type:     weather

xarray.DatasetView

• Dimensions:
  • station_name: 10
  • time_weather: 856
  • cartesian_pos_label: 3
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • time: 540
  • uvw_label: 3
• Coordinates: (8)
  • station_name
    (station_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • time_weather
    (time_weather)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    scale :

    utc

    type :

    time_weather

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645450e+09,
           1.645450e+09, 1.645450e+09], shape=(856,))

  • cartesian_pos_label
    (cartesian_pos_label)
    <U1
    'x' 'y' 'z'

    array(['x', 'y', 'z'], dtype='<U1')

  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (8)
  • DEW_POINT
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    K

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • H2O
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    /m^2

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • IONOS_ELECTRON
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    /m^2

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • PRESSURE
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    Pa

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • STATION_POSITION
    (station_name, cartesian_pos_label)
    float64
    dask.array<chunksize=(10, 3), meta=np.ndarray>

    coordinate_system :

    geocentric

    frame :

    ITRS

    origin_object_name :

    earth

    type :

    location

    units :

    m

    Array Chunk Bytes 240 B 240 B Shape (10, 3) (10, 3) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • TEMPERATURE
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    K

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • WIND_DIRECTION
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    rad

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • WIND_SPEED
    (station_name, time_weather)
    float64
    dask.array<chunksize=(10, 856), meta=np.ndarray>

    type :

    quantity

    units :

    m/s

    Array Chunk Bytes 66.88 kiB 66.88 kiB Shape (10, 856) (10, 856) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (1)

  type :

  weather

gain_curve_xdt = ms_xdt.gain_curve_xds
gain_curve_xdt.ds

<xarray.DatasetView> Size: 6kB
Dimensions:                 (antenna_name: 10, poly_term: 1, receptor_label: 2,
                             baseline_id: 55, frequency: 6, polarization: 2,
                             time: 540, uvw_label: 3)
Coordinates: (12/13)
  * antenna_name            (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'PT' 'SC'
    antenna_id              (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
    gain_curve_type         (antenna_name) <U9 360B dask.array<chunksize=(10,), meta=np.ndarray>
    mount                   (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
    station_name            (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
    telescope_name          (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
    ...                      ...
    polarization_type       (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
  * baseline_id             (baseline_id) int64 440B 0 1 2 3 4 ... 51 52 53 54
  * frequency               (frequency) float64 48B 5.068e+09 ... 5.07e+09
  * polarization            (polarization) <U2 16B 'RR' 'LL'
  * time                    (time) float64 4kB 1.645e+09 1.645e+09 ... 1.645e+09
  * uvw_label               (uvw_label) <U1 12B 'u' 'v' 'w'
Dimensions without coordinates: poly_term
Data variables:
    GAIN_CURVE              (antenna_name, poly_term, receptor_label) float64 160B dask.array<chunksize=(10, 1, 2), meta=np.ndarray>
    GAIN_CURVE_INTERVAL     (antenna_name) float64 80B dask.array<chunksize=(10,), meta=np.ndarray>
    GAIN_CURVE_SENSITIVITY  (antenna_name, receptor_label) float64 160B dask.array<chunksize=(10, 2), meta=np.ndarray>
Attributes:
    measured_date:  2022-02-21T09:50:25
    type:           gain_curve

xarray.DatasetView

• Dimensions:
  • antenna_name: 10
  • poly_term: 1
  • receptor_label: 2
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • time: 540
  • uvw_label: 3
• Coordinates: (13)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • antenna_id
    (antenna_name)
    int32
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

  • gain_curve_type
    (antenna_name)
    <U9
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 360 B 360 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • mount
    (antenna_name)
    <U6
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • station_name
    (antenna_name)
    <U2
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • telescope_name
    (antenna_name)
    <U4
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • receptor_label
    (receptor_label)
    <U5
    'pol_0' 'pol_1'

    array(['pol_0', 'pol_1'], dtype='<U5')

  • polarization_type
    (antenna_name, receptor_label)
    <U1
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (3)
  • GAIN_CURVE
    (antenna_name, poly_term, receptor_label)
    float64
    dask.array<chunksize=(10, 1, 2), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10, 1, 2) (10, 1, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • GAIN_CURVE_INTERVAL
    (antenna_name)
    float64
    dask.array<chunksize=(10,), meta=np.ndarray>

    type :

    quantity

    units :

    s

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • GAIN_CURVE_SENSITIVITY
    (antenna_name, receptor_label)
    float64
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    type :

    quantity

    units :

    K/Jy

    Array Chunk Bytes 160 B 160 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (2)

  measured_date :

  2022-02-21T09:50:25

  type :

  gain_curve

phase_calibration_xdt = ms_xdt.phase_calibration_xds
phase_calibration_xdt

<xarray.DataTree 'phase_calibration_xds'>
Group: /VLBA_TL016B_split_3/phase_calibration_xds
    Dimensions:                   (time: 540, baseline_id: 55, frequency: 6,
                                   polarization: 2, uvw_label: 3, antenna_name: 10,
                                   time_phase_cal: 141, receptor_label: 2,
                                   tone_label: 2)
    Coordinates:
      * antenna_name              (antenna_name) <U2 80B 'BR' 'FD' ... 'PT' 'SC'
        antenna_id                (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
        mount                     (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
        station_name              (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
        telescope_name            (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
      * time_phase_cal            (time_phase_cal) float64 1kB 1.645e+09 ... 1.64...
      * receptor_label            (receptor_label) <U5 40B 'pol_0' 'pol_1'
        polarization_type         (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
      * tone_label                (tone_label) <U6 48B 'freq_0' 'freq_1'
    Inherited coordinates:
      * baseline_id               (baseline_id) int64 440B 0 1 2 3 4 ... 51 52 53 54
      * frequency                 (frequency) float64 48B 5.068e+09 ... 5.07e+09
      * polarization              (polarization) <U2 16B 'RR' 'LL'
      * time                      (time) float64 4kB 1.645e+09 ... 1.645e+09
      * uvw_label                 (uvw_label) <U1 12B 'u' 'v' 'w'
    Data variables:
        PHASE_CAL                 (antenna_name, time_phase_cal, receptor_label, tone_label) complex64 45kB dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>
        PHASE_CAL_CABLE_CAL       (antenna_name, time_phase_cal) float64 11kB dask.array<chunksize=(10, 141), meta=np.ndarray>
        PHASE_CAL_INTERVAL        (antenna_name, time_phase_cal) float64 11kB dask.array<chunksize=(10, 141), meta=np.ndarray>
        PHASE_CAL_TONE_FREQUENCY  (antenna_name, time_phase_cal, receptor_label, tone_label) float64 45kB dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>
    Attributes:
        type:     phase_calibration

xarray.DataTree

'phase_calibration_xds'

• Dimensions:
  • time: 540
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • uvw_label: 3
  • antenna_name: 10
  • time_phase_cal: 141
  • receptor_label: 2
  • tone_label: 2
• Coordinates: (9)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • antenna_id
    (antenna_name)
    int32
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

  • mount
    (antenna_name)
    <U6
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • station_name
    (antenna_name)
    <U2
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • telescope_name
    (antenna_name)
    <U4
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • time_phase_cal
    (time_phase_cal)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645424e+09,
           1.645424e+09, 1.645424e+09, 1.645424e+09, 1.645425e+09, 1.645425e+09,
           1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,
           1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,
           1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,
           1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,
           1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09, 1.645425e+09,
           1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,
           1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,
           1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09,
           1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645426e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645427e+09,
           1.645427e+09, 1.645427e+09, 1.645427e+09, 1.645428e+09, 1.645428e+09,
           1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,
           1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,
           1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,
           1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,
           1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09, 1.645428e+09,
           1.645429e+09, 1.645429e+09, 1.645429e+09, 1.645429e+09, 1.645429e+09,
           1.645429e+09, 1.645429e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,
           1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,
           1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,
           1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09, 1.645430e+09,
           1.645430e+09])

  • receptor_label
    (receptor_label)
    <U5
    'pol_0' 'pol_1'

    array(['pol_0', 'pol_1'], dtype='<U5')

  • polarization_type
    (antenna_name, receptor_label)
    <U1
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

  • tone_label
    (tone_label)
    <U6
    'freq_0' 'freq_1'

    array(['freq_0', 'freq_1'], dtype='<U6')

• Inherited coordinates: (5)
  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (4)
  • PHASE_CAL
    (antenna_name, time_phase_cal, receptor_label, tone_label)
    complex64
    dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>

    Array Chunk Bytes 44.06 kiB 44.06 kiB Shape (10, 141, 2, 2) (10, 141, 2, 2) Dask graph 1 chunks in 2 graph layers Data type complex64 numpy.ndarray

  • PHASE_CAL_CABLE_CAL
    (antenna_name, time_phase_cal)
    float64
    dask.array<chunksize=(10, 141), meta=np.ndarray>

    type :

    quantity

    units :

    s

    Array Chunk Bytes 11.02 kiB 11.02 kiB Shape (10, 141) (10, 141) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • PHASE_CAL_INTERVAL
    (antenna_name, time_phase_cal)
    float64
    dask.array<chunksize=(10, 141), meta=np.ndarray>

    type :

    quantity

    units :

    s

    Array Chunk Bytes 11.02 kiB 11.02 kiB Shape (10, 141) (10, 141) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

  • PHASE_CAL_TONE_FREQUENCY
    (antenna_name, time_phase_cal, receptor_label, tone_label)
    float64
    dask.array<chunksize=(10, 141, 2, 2), meta=np.ndarray>

    type :

    quantity

    units :

    Hz

    Array Chunk Bytes 44.06 kiB 44.06 kiB Shape (10, 141, 2, 2) (10, 141, 2, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (1)

  type :

  phase_calibration

system_calibration_xds = ms_xdt.system_calibration_xds
system_calibration_xds

<xarray.DataTree 'system_calibration_xds'>
Group: /VLBA_TL016B_split_3/system_calibration_xds
    Dimensions:            (time: 540, baseline_id: 55, frequency: 6,
                            polarization: 2, uvw_label: 3, antenna_name: 10,
                            time_system_cal: 1192, receptor_label: 2)
    Coordinates:
      * antenna_name       (antenna_name) <U2 80B 'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'
        antenna_id         (antenna_name) int32 40B dask.array<chunksize=(10,), meta=np.ndarray>
        mount              (antenna_name) <U6 240B dask.array<chunksize=(10,), meta=np.ndarray>
        station_name       (antenna_name) <U2 80B dask.array<chunksize=(10,), meta=np.ndarray>
        telescope_name     (antenna_name) <U4 160B dask.array<chunksize=(10,), meta=np.ndarray>
      * time_system_cal    (time_system_cal) float64 10kB 1.645e+09 ... 1.645e+09
      * receptor_label     (receptor_label) <U5 40B 'pol_0' 'pol_1'
        polarization_type  (antenna_name, receptor_label) <U1 80B dask.array<chunksize=(10, 2), meta=np.ndarray>
    Inherited coordinates:
      * baseline_id        (baseline_id) int64 440B 0 1 2 3 4 5 ... 50 51 52 53 54
      * frequency          (frequency) float64 48B 5.068e+09 5.068e+09 ... 5.07e+09
      * polarization       (polarization) <U2 16B 'RR' 'LL'
      * time               (time) float64 4kB 1.645e+09 1.645e+09 ... 1.645e+09
      * uvw_label          (uvw_label) <U1 12B 'u' 'v' 'w'
    Data variables:
        TSYS               (antenna_name, time_system_cal, receptor_label) float64 191kB dask.array<chunksize=(10, 1192, 2), meta=np.ndarray>
    Attributes:
        type:     system_calibration

xarray.DataTree

'system_calibration_xds'

• Dimensions:
  • time: 540
  • baseline_id: 55
  • frequency: 6
  • polarization: 2
  • uvw_label: 3
  • antenna_name: 10
  • time_system_cal: 1192
  • receptor_label: 2
• Coordinates: (8)
  • antenna_name
    (antenna_name)
    <U2
    'BR' 'FD' 'HN' ... 'OV' 'PT' 'SC'

    array(['BR', 'FD', 'HN', 'KP', 'LA', 'MK', 'NL', 'OV', 'PT', 'SC'], dtype='<U2')

  • antenna_id
    (antenna_name)
    int32
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 40 B 40 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type int32 numpy.ndarray

  • mount
    (antenna_name)
    <U6
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 240 B 240 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • station_name
    (antenna_name)
    <U2
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • telescope_name
    (antenna_name)
    <U4
    dask.array<chunksize=(10,), meta=np.ndarray>

    Array Chunk Bytes 160 B 160 B Shape (10,) (10,) Dask graph 1 chunks in 2 graph layers Data type

  • time_system_cal
    (time_system_cal)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645450e+09,
           1.645450e+09, 1.645450e+09], shape=(1192,))

  • receptor_label
    (receptor_label)
    <U5
    'pol_0' 'pol_1'

    array(['pol_0', 'pol_1'], dtype='<U5')

  • polarization_type
    (antenna_name, receptor_label)
    <U1
    dask.array<chunksize=(10, 2), meta=np.ndarray>

    Array Chunk Bytes 80 B 80 B Shape (10, 2) (10, 2) Dask graph 1 chunks in 2 graph layers Data type

• Inherited coordinates: (5)
  • baseline_id
    (baseline_id)
    int64
    0 1 2 3 4 5 6 ... 49 50 51 52 53 54

    array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
           18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
           36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
           54])

  • frequency
    (frequency)
    float64
    5.068e+09 5.068e+09 ... 5.07e+09

    channel_width :

    {'attrs': {'type': 'quantity', 'units': 'Hz'}, 'data': 500000.0, 'dims': []}

    observer :

    gcrs

    reference_frequency :

    {'attrs': {'observer': 'gcrs', 'type': 'spectral_coord', 'units': 'Hz'}, 'data': 5068000000.0, 'dims': []}

    spectral_window_intents :

    ['UNSPECIFIED']

    spectral_window_name :

    spw_1

    type :

    spectral_coord

    units :

    Hz

    array([5.0680e+09, 5.0685e+09, 5.0690e+09, 5.0695e+09, 5.0700e+09, 5.0705e+09])

  • polarization
    (polarization)
    <U2
    'RR' 'LL'

    array(['RR', 'LL'], dtype='<U2')

  • time
    (time)
    float64
    1.645e+09 1.645e+09 ... 1.645e+09

    format :

    unix

    integration_time :

    {'attrs': {'type': 'quantity', 'units': 's'}, 'data': 2.0, 'dims': []}

    scale :

    utc

    type :

    time

    units :

    s

    array([1.645424e+09, 1.645424e+09, 1.645424e+09, ..., 1.645430e+09,
           1.645430e+09, 1.645430e+09], shape=(540,))

  • uvw_label
    (uvw_label)
    <U1
    'u' 'v' 'w'

    array(['u', 'v', 'w'], dtype='<U1')

• Data variables: (1)
  • TSYS
    (antenna_name, time_system_cal, receptor_label)
    float64
    dask.array<chunksize=(10, 1192, 2), meta=np.ndarray>

    type :

    quantity

    units :

    K

    Array Chunk Bytes 186.25 kiB 186.25 kiB Shape (10, 1192, 2) (10, 1192, 2) Dask graph 1 chunks in 2 graph layers Data type float64 numpy.ndarray

• Attributes: (1)

  type :

  system_calibration

ps_xdt.xr_ps.plot_phase_centers()

ps_xdt.xr_ps.plot_antenna_positions_2d()
